Name: Giant 2023 Trance X Advanced E Elite 0
SKU: 386000

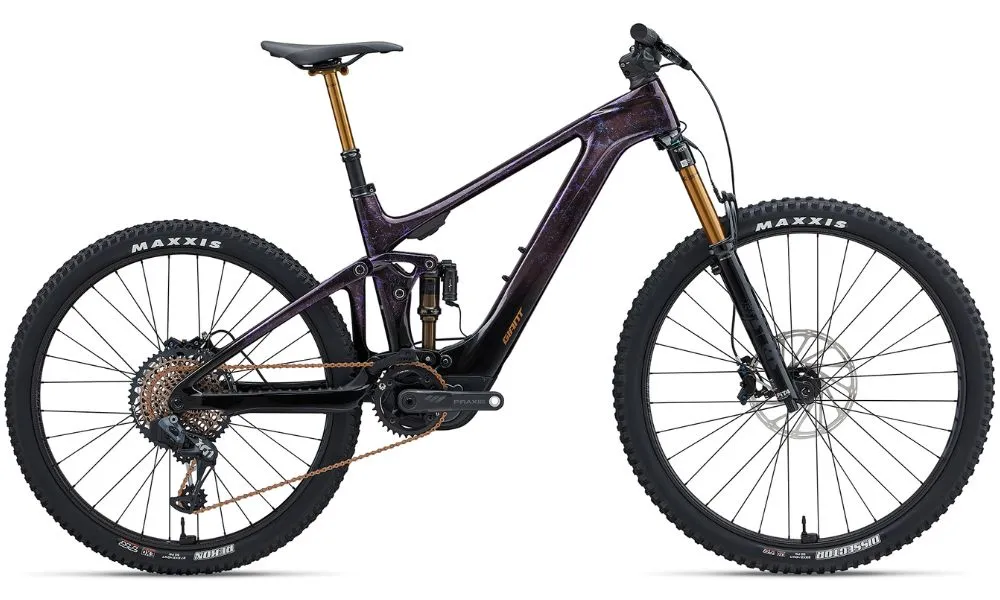

Giant 2023 Trance X Advanced E Elite 0

Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-power E-MTB. A new revolutionary new battery technology minimizes size and weight, while still providing full power. Ride technical trails the way you always dreamed of.

LIGHTER WEIGHT

New EnergyPak 400 battery is designed to be ultra light. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.

ADVANCED COCKPIT CONTROL

RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR Trail integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.

MORE POWER

Our revolutionary battery cell technology enables the SyncDrive Pro motor to provide full power. With 85Nm torque and weighing just 2.7kg, this results in quicker acceleration and superior climbing capabilities on technical trails.

Specifications

Giant 2023 Trance X Advanced E Elite 0

Frame

Colour: Mirage/Black
Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork: Fox 36 Factory Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, e-bike integrated
Shock: NA

Drivetrain

Drive Unit: Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology"
Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Crankset: Praxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring
Pedals:
Chain: SRAM XX1 Eagle Powerlink
Bottom Bracket: NA
Rear Derailleur: SRAM XO1 Eagle AXS
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: SRAM AXS Rocker Paddle, wireless electronic shifting
Freewheel/Cassette: SRAM XG-1299, 10-52T, 12-speed

Wheels

Tyres: [F] Maxxis Dissector 29X2.40"" Foldable, TLR, EXO [R] Maxxis Rekon 27.5x2.4"" Foldable, TLR, EXO
Wheels/Rims: Zipp 3MOTO 29" [F] /27.5" [R], Carbon, with Quarq Tyrewiz
Hubs: Zipp 3MOTO ZM2

Braking System

Brakes: SRAM Code RSC, 4-piston, hydraulic disc,220mm[F] / 200mm[R]
Brake Levers: SRAM Code RSC

Other

Handlebar: Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm, meets DH test standard
Stem: Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, 3°/0°/-3° Adjust System
Saddle: Giant Romero SL, Neutral
Seat Post: Fox Transfer Factory (S:125, M:175, L:150, XL:200)
Control: Giant RideControl Ergo3, grip integrated remote
Display: Giant RideControl GO, frame integrated LED console Optional wireless ANT display
Charger: Giant EnergyPak 4A smart charger, 60% in 1:45

Geometry

Giant 2023 Trance X Advanced E Elite 0

S

163 cm 174 cm
M

171 cm 182 cm
L

176 cm 186 cm
XL

183 cm 193 cm

		S	M	L	XL
		LOW \| HIGH	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A	SEAT TUBE LENGTH (mm)	400	425	450	475
B	SEAT TUBE ANGLE	77.2° \| 78.0°	76.0° \| 76.7°	76.0° \| 76.7°	76.0° \| 76.7°
C	TOP TUBE LENGTH (mm)	577 \| 575	607 \| 605	636 \| 634	665 \| 663
D	HEAD TUBE LENGTH (mm)	95	100	115	130
E	HEAD TUBE ANGLE	65.7° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°	65.8° \| 66.5°
F	FORK RAKE (mm)	44	44	44	44
G	TRAIL (mm)	113.1 \| 108	113.1 \| 108	113.1 \| 108	113.1 \| 108
H	WHEELBASE (mm)	1194 \| 1195	1215 \| 1212	1244 \| 1244	1275 \| 1275
I	CHAIN STAY LENGTH (mm)	447 \| 447	447 \| 447	447 \| 447	447 \| 447
J	BOTTOM BRACKET DROP (mm)	10	10	10	10
K	STACK (mm)	607 \| 601	611 \| 605	625 \| 619	639 \| 633
L	REACH (mm)	439 \| 447	457 \| 462	480 \| 487	505 \| 513
M	STAND OVER HEIGHT (mm)	726 \| 735	733 \| 742	732 \| 741	741 \| 750
O	STEM LENGTH (mm)	40	40	50	50
P	CRANK LENGTH (mm)	160	165	165	170
Q	WHEEL SIZE	R27.5" / F29"	R27.5" / F29"	R27.5" / F29"	R27.5" / F29"
